MOQ : 1
Price : Send us Gerber file for free quotation
Payment Terms : T/T
Layer : 12 Layer
Material : PTEF/PPO/Rogers
Thickness : 1.0mm
Min. Line Width/Space : 0.1/0.1mm
Copper Thickness : 1.0OZ
Surface treatment : Immersion Gold
Application : Radar
Certificate : UL & IPC Standard & ISO
9Ghz High Frequency Signal PCB for Millimeter Wave Radar
♦ What's High-Frequency PCB?
High-frequency PCB is a special circuit board designed for high-frequency electromagnetic scenes, suitable for high-frequency (frequency>300MHz, corresponding to wavelength <1 meter) and microwave (frequency>3GHz, corresponding to wavelength <0.1 meter) fields. It is based on microwave substrate copper clad laminate, combined with some processes of ordinary rigid circuit board manufacturing, or made through special processing.
♦ Features of High-Frequency PCB
Special materials: use low Dk/Df substrates such as PTFE, ceramic filling materials, LCP, etc. to reduce signal attenuation (PTFE is the first choice for 5G).
Precise transmission: impedance control of ±5%, micron-level line accuracy, 30%+ loss reduction in millimeter wave band, and excellent phase stability.
Complex process: laser drilling accuracy of ±3μm, plasma etching instead of pickling, multi-layer board integrated passive devices, and high-yield production in dust-free workshops.
♦ High-frequency PCB Design Principles
Impedance control: strictly match the design value (within ±10%).
Via design: use less through holes, give priority to blind and buried holes, and complete plating.
Shielding protection: key signals are grounded, and metal shielding covers are added when necessary.
Thermal management: thermal expansion coefficient matching, and heat dissipation layers are added to key areas.
♦ Technical Parameters
|  			 Item  |  			 			 Specification  |
|  			 Laers  |  			 			 1~32  |
|  			 Board thickness  |  			 			 0.1mm-7.0mm  |
|  			 Material  |  			 			 FR-4,CEM-1/CEM-3,PI,High Tg,Rogers  |
|  			 Max panel size  |  			 			 32"×48"(800mm×1200mm)  |
|  			 Min hole size  |  			 			 0.075mm  |
|  			 Min line width  |  			 			 3mil(0.075mm)  |
|  			 Surface finish  |  			 			 OSP,HASL,Imm Gold/Nickel/Ag, Electric gold  |
|  			 Copper thickness  |  			 			 0.5-7.0OZ  |
|  			 Soldermask  |  			 			 Green/Yellow/Black/White/Red/Blue  |
|  			 Silkscreen  |  			 			 Red/Yellow/Black/White  |
|  			 Min PAD  |  			 			 5mil(0.13mm)  |
|  			 Inter package  |  			 			 Vacuum  |
|  			 Outer package  |  			 			 Carton  |
|  			 Outline tolerance  |  			 			 ±0.75mm  |
|  			 Hole tolerance  |  			 			 PTH:±0.05 NPTH:±0.025  |
|  			 Certificate  |  			 			 UL,ISO 9001,ISO14001,IATF16949  |
|  			 Special request  |  			 			 Blind hole+Gold finger + BGA  |
|  			 Material Suppilers  |  			 			 Shengyi, KB, Nanya, ITEQ,etc.  |
|
                                             |

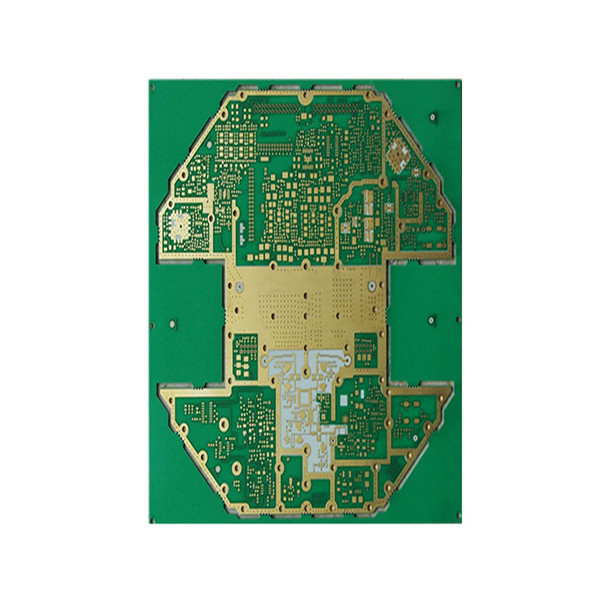

                        High Frequency Signal RF Prototype FR4 Circuit Board PCB 9Ghz For Millimeter Wave Radar Images |
